The Hot Sale Automatic Door Opener -Sliding Gate Opener

The Hot Sale Automatic Door Opener

Sliding Gate Opener

Ahouse Gate Opener .www.ahouse-gb.com

Contact us : ahouse-gb@hotmail.com

ElectricalPower supply  : AC240/AC110V±10%V, 50Hz
Operating Voltage  : DC 24V Electronic Controller  : Microcontroller Based          Safety Detection : Over Current Detection           Safety Barrier   : Infrared Beam Sensor (Optional)
Mechanical :Model : SDMax. Gate Weight: 800 kgMotor speed: 1800 rpmGate moving speed: 13m/min
Sensor: Intelligent Position Detection/ Magnetic Limit Switch (optional)Operating distance: ≥50m Frequency:433.92 MHzRemote control mode: Close/ Open/ Stop/ Pedestrain OpenAuto close time: 0~99 sec (Adjustable)Noise: ≤62dBProduct actual size: 29*23*15 cmPacking size: 40*30*18.5 cmEnvironmental temperature: -15°C to +55°C

Learn more information about Sliding Gate Opener :

http://www.youtube.com/watch?v=JzyTX_naIjc&feature=plcp



Contact person :Jessica.C

MSN :ahouse-gb@hotmail.com

Skype:aho_st16

Email: st61@ngapan.com

TM:cn209751916

Ahouse Double Swing Gate Opener - Using In Farm

Ahouse Double Swing Gate Opener



 -Ahouse Gate Opener



Accessories for the motor

Accessories for the motor

Push Button :

rack :

Remtoe Control:

Keypad System :

Solar Panel :

Photo Cell :

Electric Lock :

Flashing Lamp :

OutDoor Lock - DS218 DC 24V

Out Door Lock

                                                         -Ahouse Gate Opener

Technical Specification :

Operating Voltage : DC 24V

Input Voltage : AC 110V~240V


Model 1

Rated Voltage	DC 12V/24V
Materials	Aluminum Die Cast Alloy(Lock)
Surface	Power Coating
Manual Override	Key Operated Cam-Lock to enable manual operating during power failure
Dimension	60*70*118 mm
Usage	Swing Gate Opener

Model 2 :

HD -DL

Single Door 180KG

Double Door 180KG

useage : Interior Door

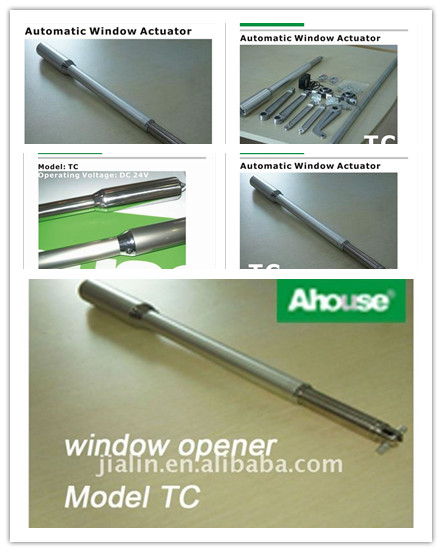

Automatic Window Actuator - DC 24V/IP66

Automatic Window Actuator

                                                      -Ahouse Gate Opener

Technical Specifications:

Operatoing Voltage :DC 24 V

Input Voltage : AC 110V ~ 240V

Electrical

Supply Voltage	AC 110V~240V
Operating Voltage	DC 24V
Safety Detection	Over Current Detection
Optional Device	Heat Detecor/Smoke Detector
Controller	Build-in Controller
IP Rating	IP66

Mechanical

Model	TC3	TC2
Max.Piston Stroke	300mm	200mm
Max.Length of motor	900mm	720mm
Max.Force	1000N	800N
Frame Housing	Stainless Steel / Aluminum Alloy
Driving Method	Scre Driven Piston Type
Opening Degree	0 to 65 Degree
Stroke Speed	30 mm/s
Temperature	-25℃ to +50℃

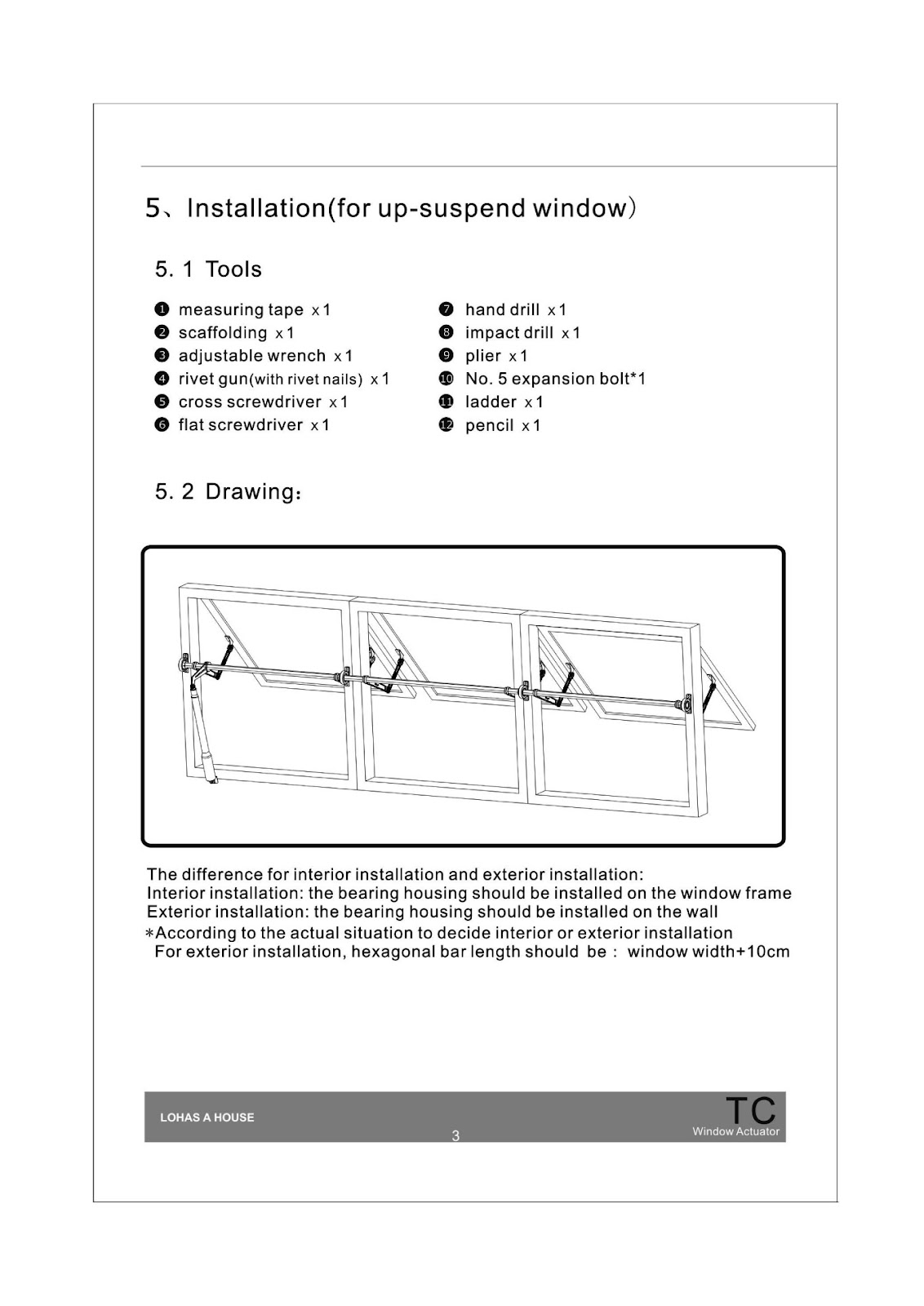

Installation Instruction :

Installation Instruction Video:

http://www.youtube.com/watch?v=QCmyr50oQa8&feature=plcp

Our TC Certificate of CE :

Contact us :

Contact Person :Jessica.C

Your Success is Our Business !

Address:2nd Industrial Park, Baishi, Sanxiang,Zhongshan City, Guangdong, P.R.China

Ahouse Gate Opener

Mobile:86-13226060042

Email:st61@ngapan.com

Skype:aho_st16

MSN:ahouse-gb@hotmail.com

TM:st61@ngapan.com

QQ:2572471193

http://www.jialin.en.alibaba.com

http://www.ngapan.com/

http://www.ahouse-gb.com

Underground Swing Gate Opener - DC 24V /CE /IP66

Underground  Swing Gate Opener

                                                  -Ahouse Gate Opener

Technical Specifications:

Operatoing Voltage :DC 24 V

Input Voltage : AC 110V ~ 240V



Electrical

Main Supply Voltage	220V/110V AC
Operating Voltage	DC 24V
Electric Controller	Microcontroller Based
Safety Detection	Over Current Detection
Safety Barrier	Infrared Beam Sensor(Optional)

Mechanical

Model	UA
Max.Leaf’s Weight	350 kg/Leaf
Max.Leaf’s Length	3 meter/Leaf
Frame Housing	Aluminum Alloy
Opening Degree	0 to 180 degree
90 Degree Rotation Time	10 seconds
Tempreature	-25℃~+50℃
Clutch System	Adjustable

Accessories to choose :

Installation Instruction :

Installation Instruction Video:

http://www.youtube.com/watch?v=OFkvHmu5CwI&feature=plcp
